Mid Line Panel Hot Melt Adhesive Production Line Gluing Filter Making Machine

Product Categories

Hebei Leiman Filter Material Co.,Ltd

Contact Now

Brand Name : PLM

Model Number : PLFJ-2

Certification : SE

Place of Origin : CHINA

MOQ : 1SET

Price : USD 10800/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5 SETS PER 30DAYS

Delivery Time : 20 DAYS AFTER DEPOSTI

Packaging Details : EXPORT STANDARD WOOD CARTON

PRODUCT NAME : Panel Air Filter Gluing Machine mid-line gluing machine

ProductCpacibility : 6pcs/min

Hotmeltcapacity : 10kg

Hotmeltapplicatorheatpower : 6kw

Workingairpressure : 0.6MPa

Mainmachinepower : 120w

Powersupply : 380V/50Hz

M/Cweight : 250kg

Contact Now

Panel Air Filter Gluing Machine mid-line gluing machine

Panel Air Filter Gluing Machine mid-line gluing machine General Description

This machine is used for dispensing hot melt lines on the surface of the panel air filter.

Panel Air Filter Gluing Machine mid-line gluing machine Specification

Product Cpacibility	6pcs/min
Hot melt capacity	10kg
Hot melt applicator heat power	6kw
Working air pressure	0.6MPa
Main machine power	120w
Power supply	380V/50Hz
M/C weight	250kg
Main machine size	2400×585×1250mm(L×W×H)
Hot melt applicator size	600×700×1325mm(L×W×H)

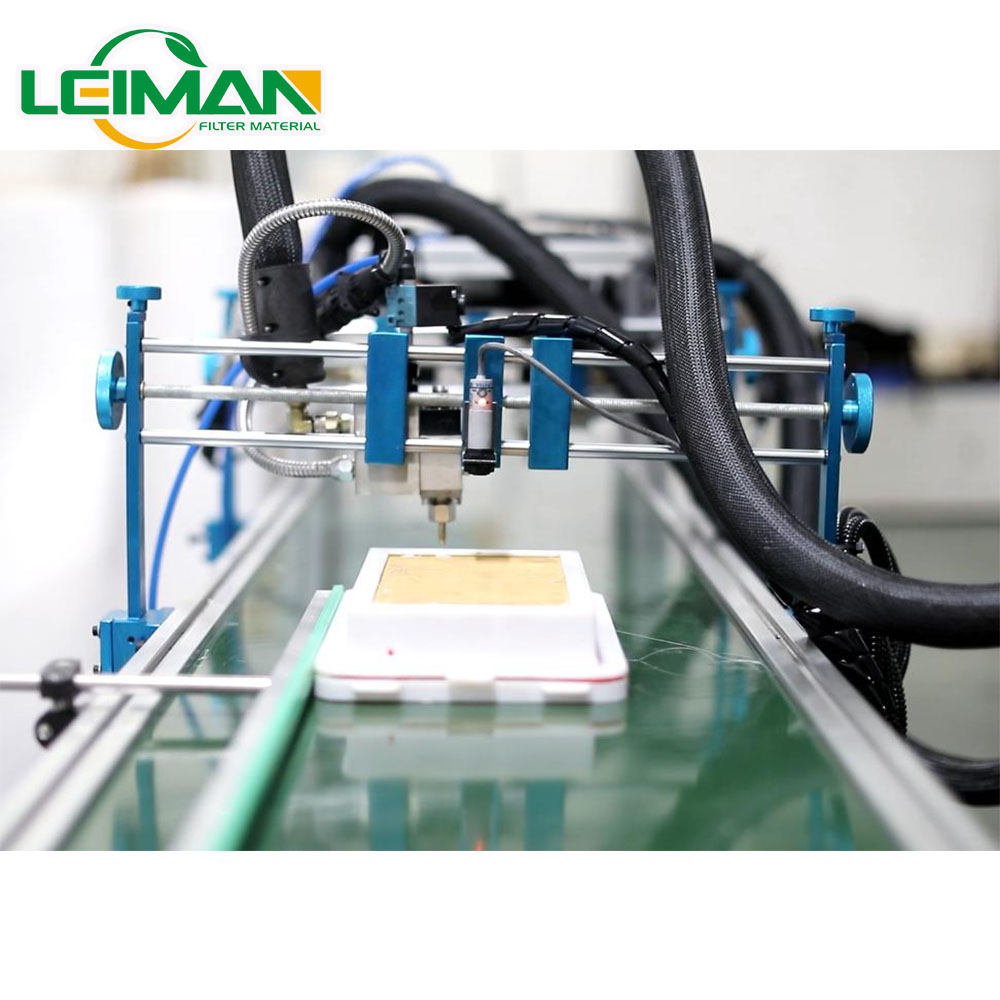

Panel Air Filter Gluing Machine mid-line gluing machine photo

Machine characteristics

Mid Line Panel Hot Melt Adhesive Production Line Gluing Filter Making Machine

Operating procedures

Mid Line Panel Hot Melt Adhesive Production Line Gluing Filter Making Machine

Product Tags:

120w hot melt adhesive production line
